Description

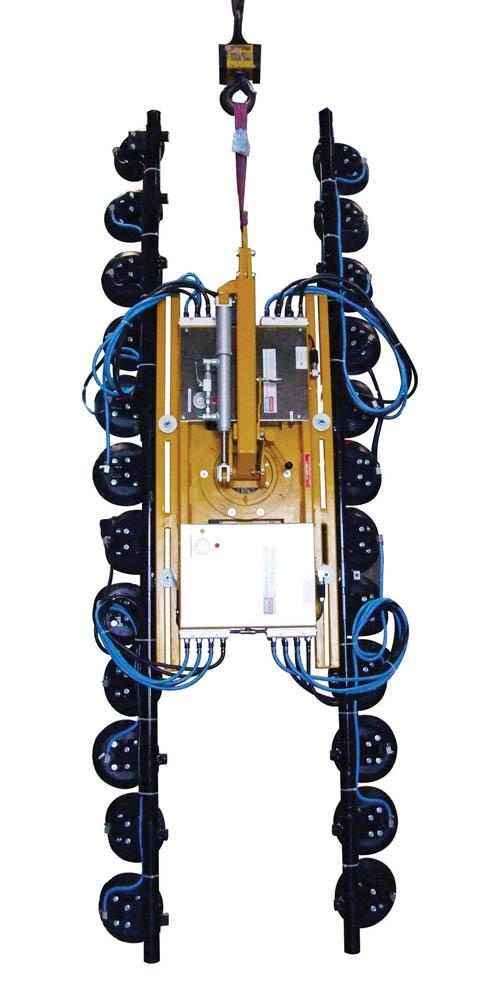

The DSZ2-12V vacuum lifter retains all the benefits of our standard curved glass lifters yet boasts 90⁰ hydraulically dampened tilt and manual 360⁰ rotation for effortless movement of glass.

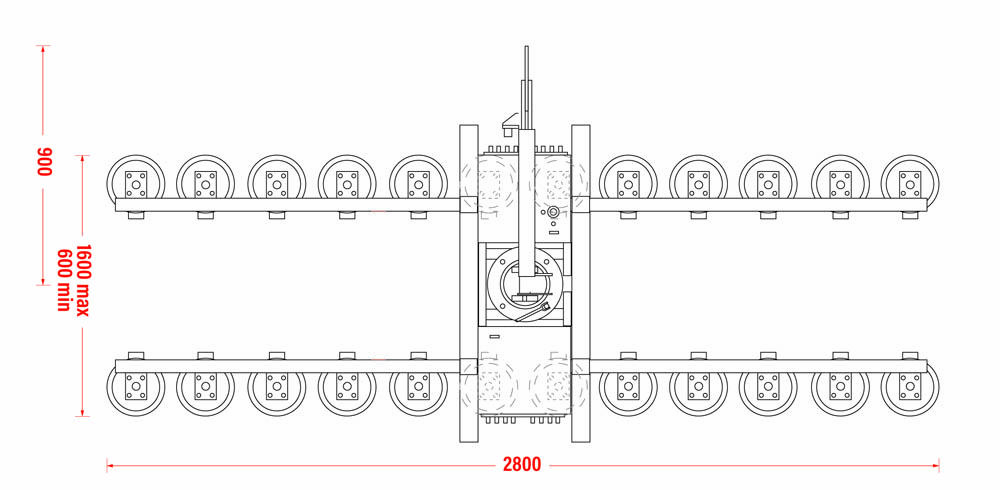

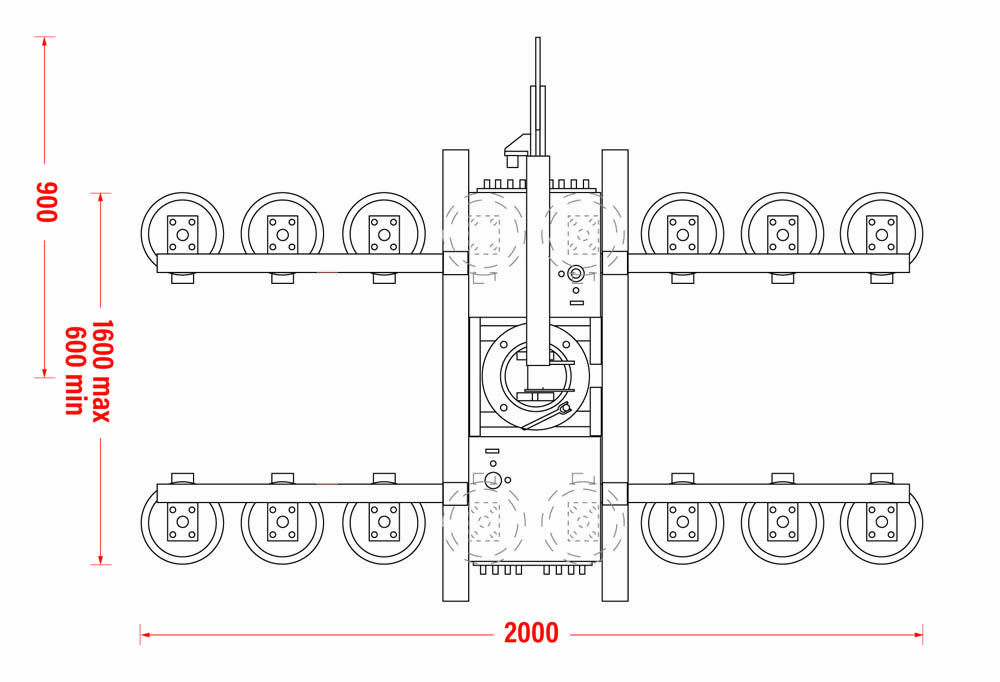

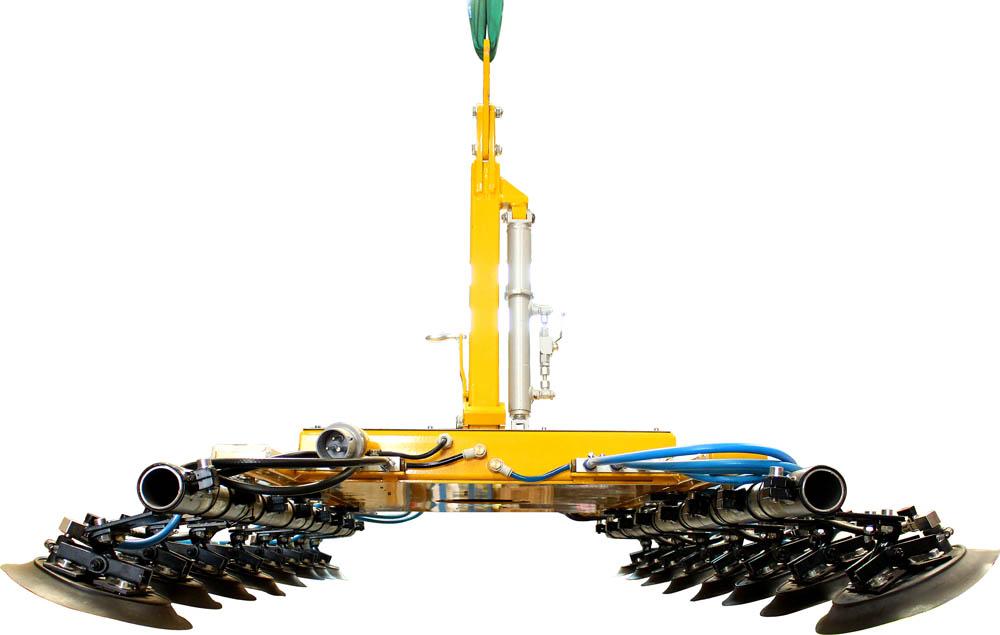

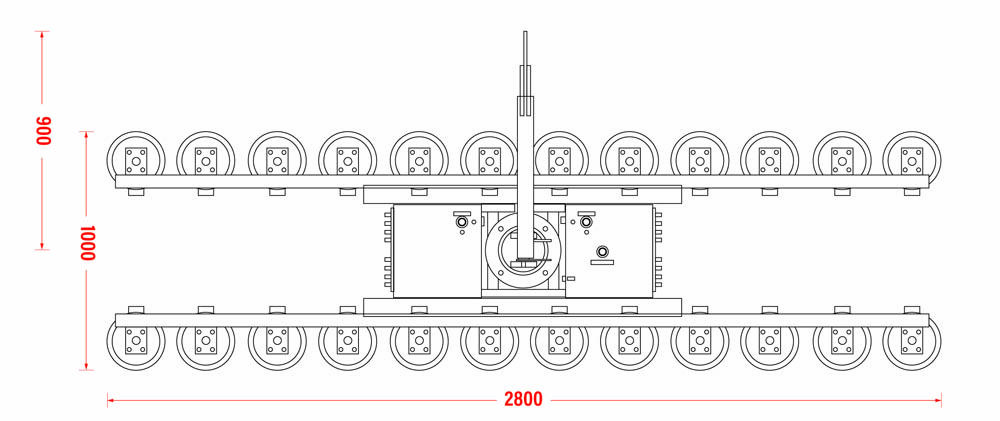

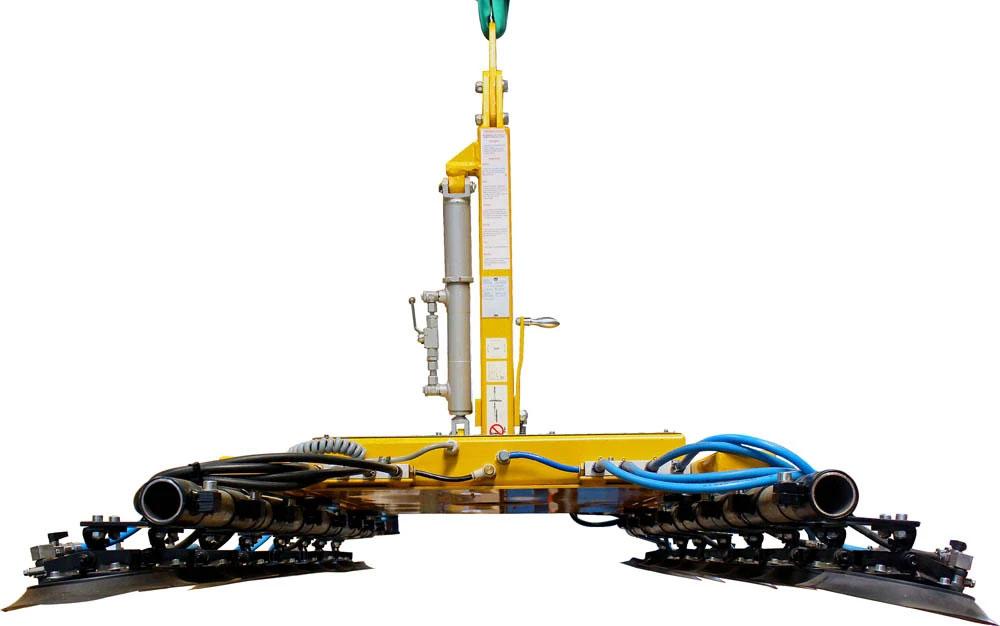

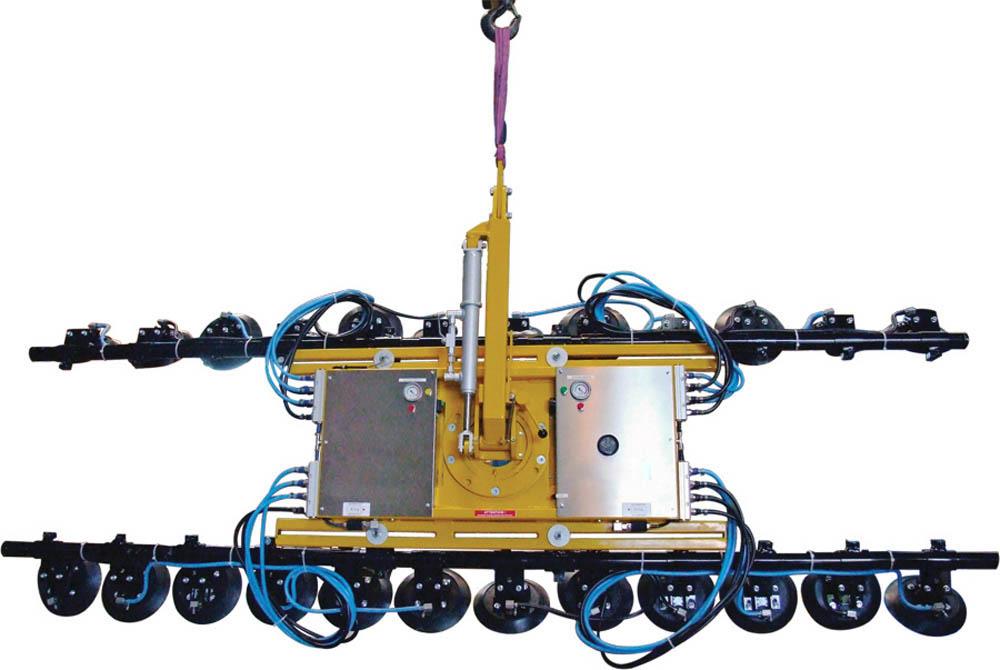

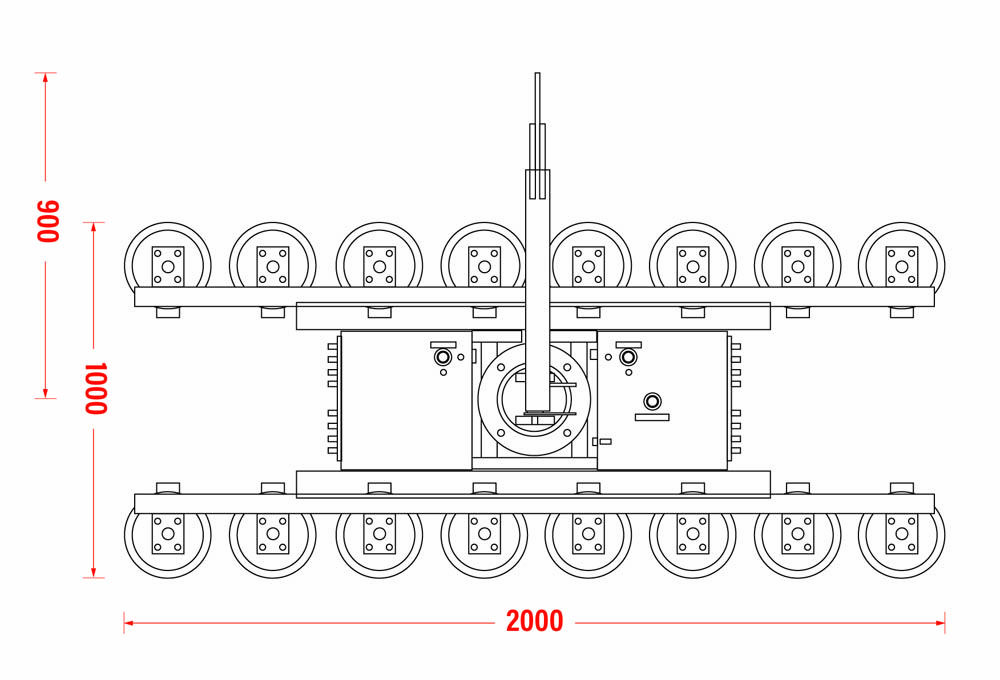

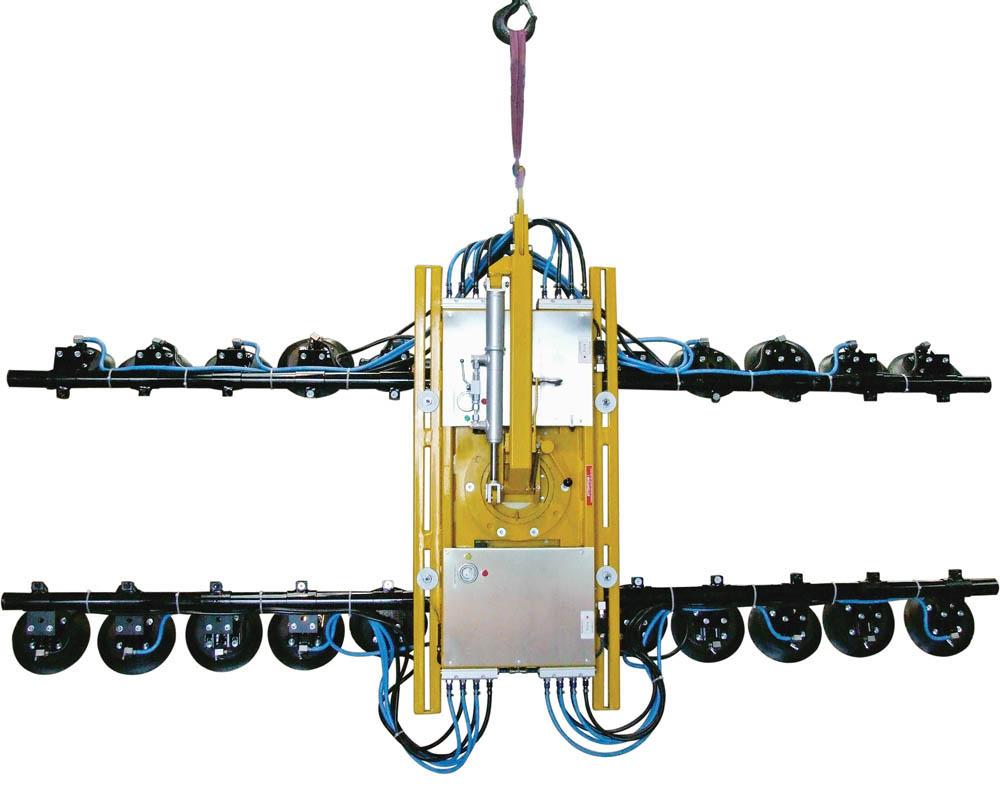

The DSZ2-12V encompasses 24 pads mounted onto flexible swivel arms that mould themselves to a load. This specialist lifter can be configured two ways to suit convex or concave glass loads weighing up to 600kg.
Safety features include two independent vacuum circuits, each capable of handling the load independently, as well as audio-visual low vacuum alarm.
| Capacity | 600kg (24 cups) 400kg (16 cups) |
| Weight | 190kg (24 cups) 175kg (16 cups) |
| Depth | 300mm |
| Rotation | 360° manual lockable continuous |
| Tilt | Hydraulically dampened 90⁰ tilt |
| Vacuum system | Dual circuit |
