Description

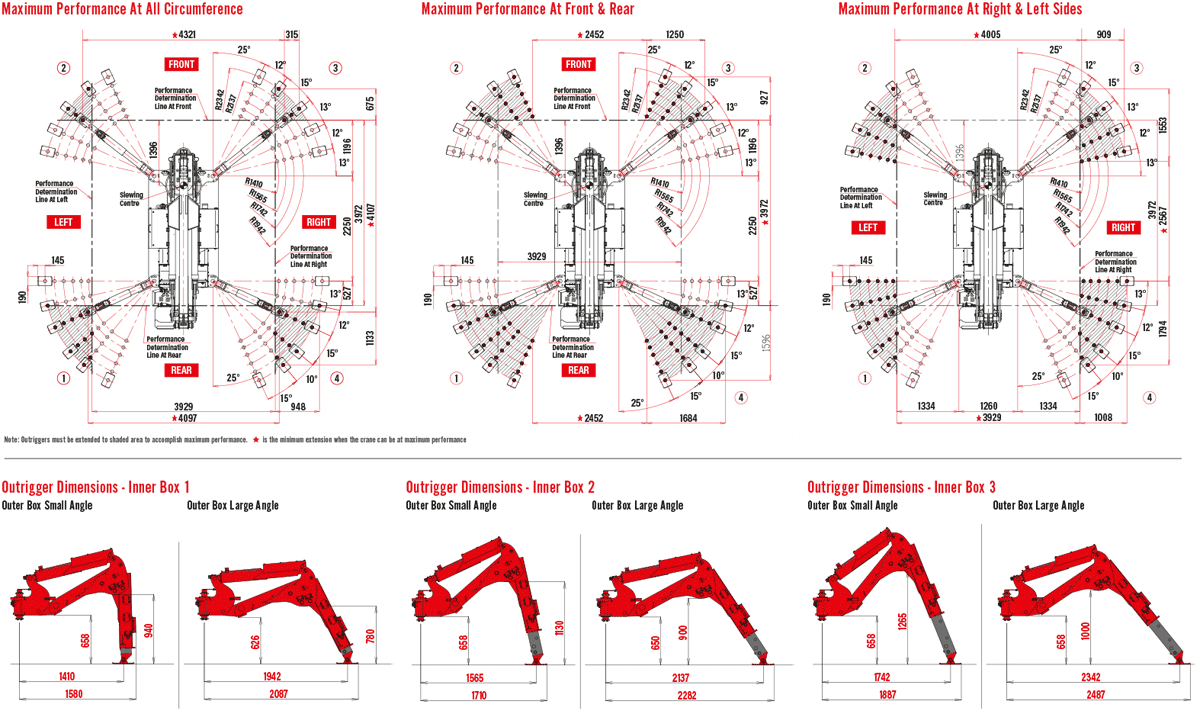

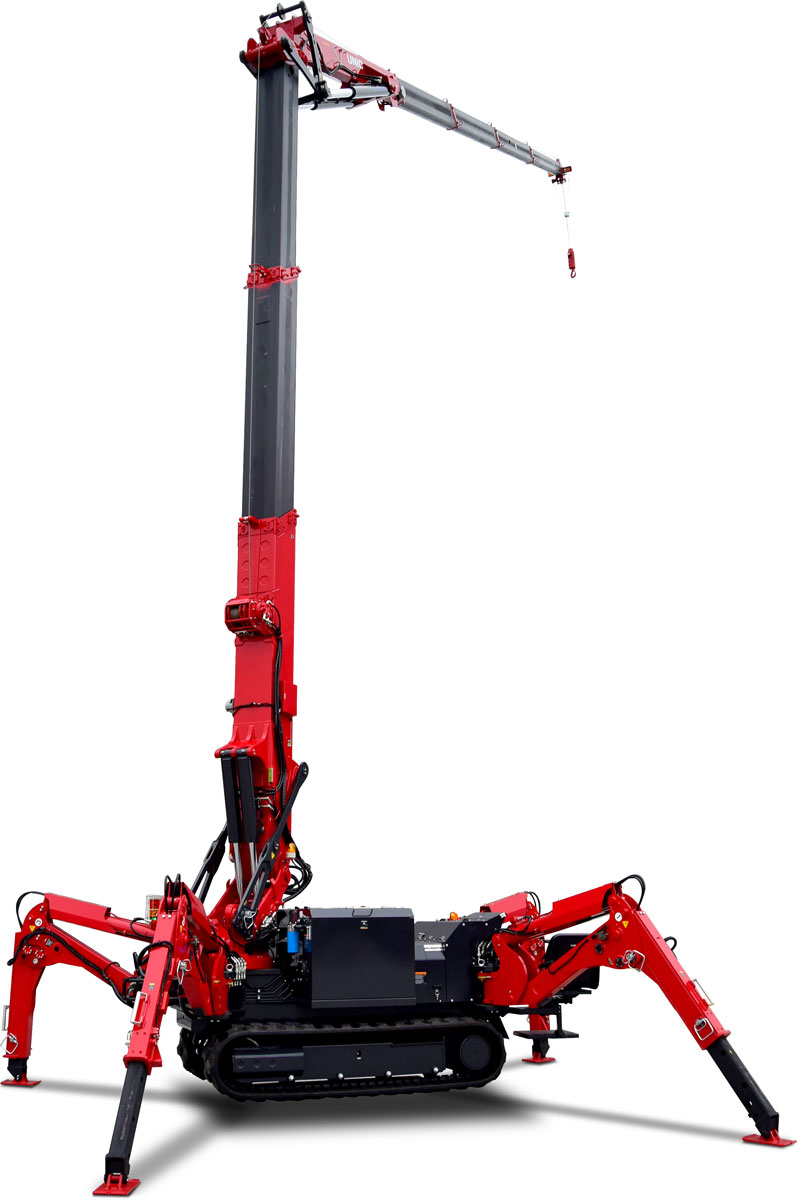

The Cube Crane has innovative, multi-position outrigger configurations, enabling this mini spider crane to work and operate safely on restrictive sites.
This compact crane features a safety load indicator system with an over winding alarm and intelligent voice warning system to maximise safety during lifting operations. The upgrade to the radio remote incorporating Bi-axis joysticks and feedback display provides the operator all information they require.

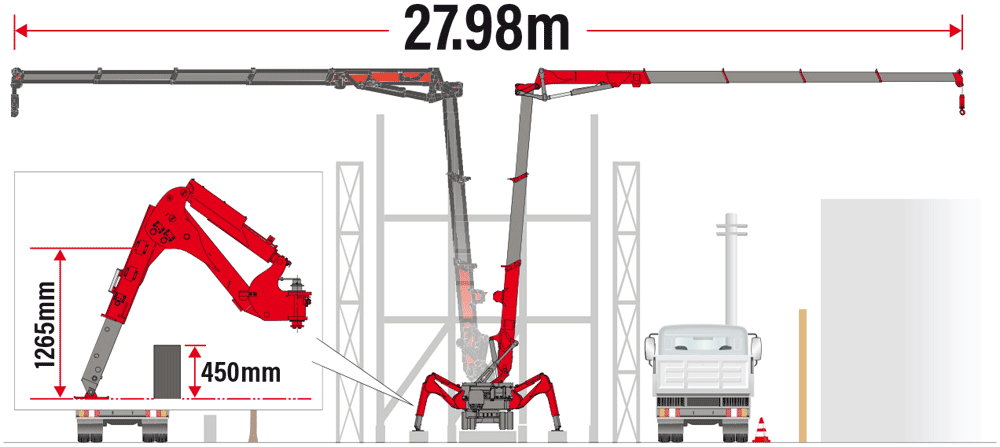

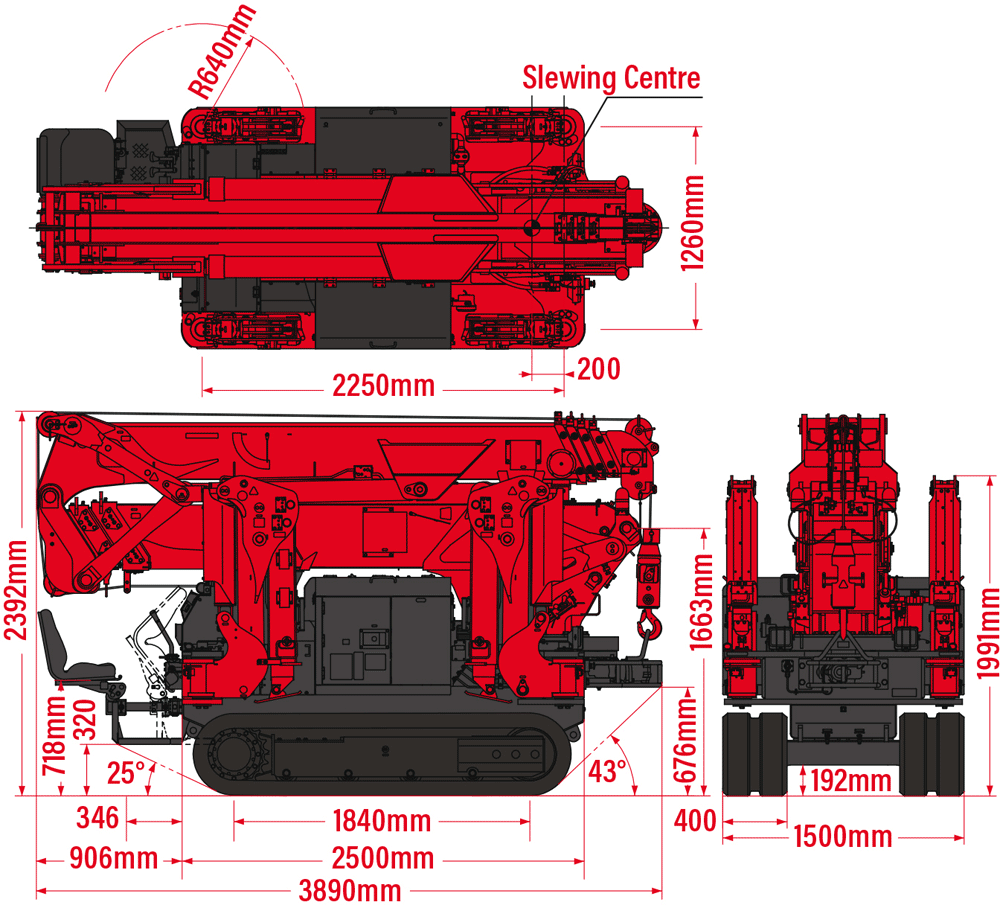

With almost a tonne of lifting capacity, this mini spider crane also benefits from a working height of 21.1 metres and a horizontal reach giving a maximum working radius of 13.99m. At just 1.5m wide, this compact mini spider crane can gain access through a standard double doorway and can easily move around corners thanks to its ability to reposition the boom whilst travelling to its install location.

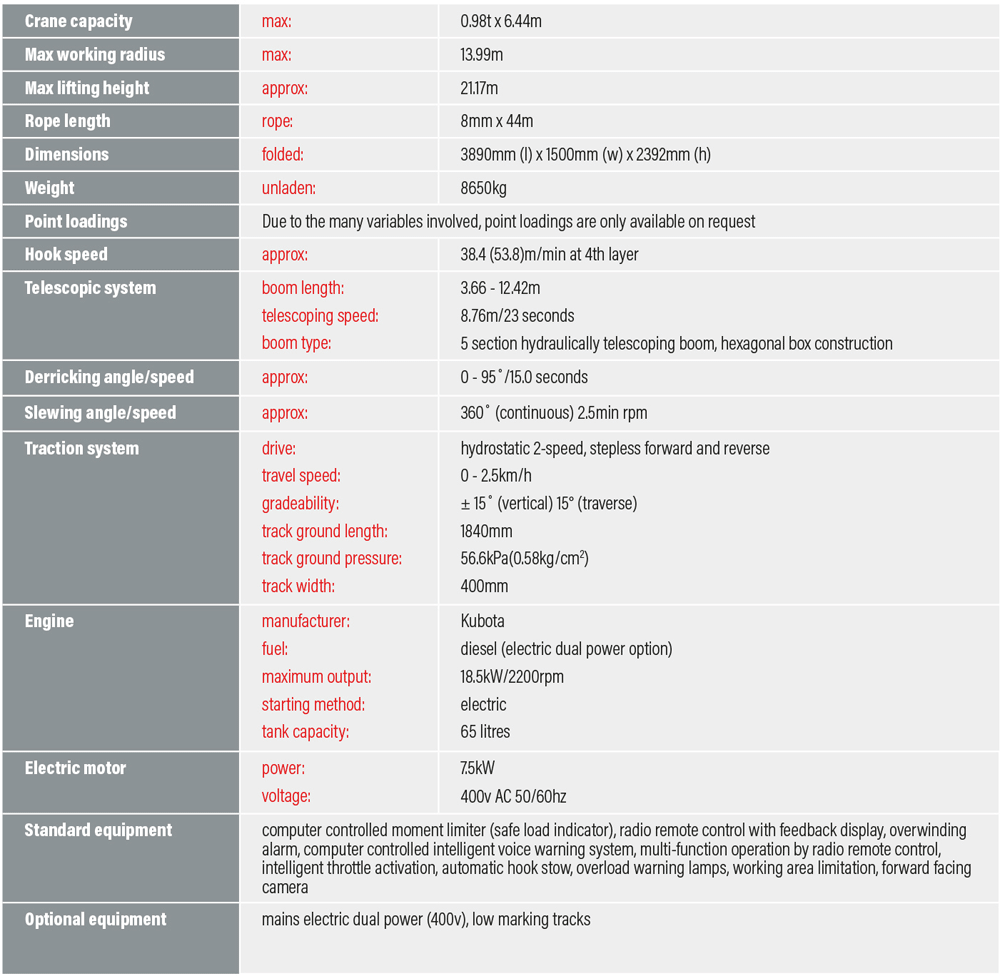

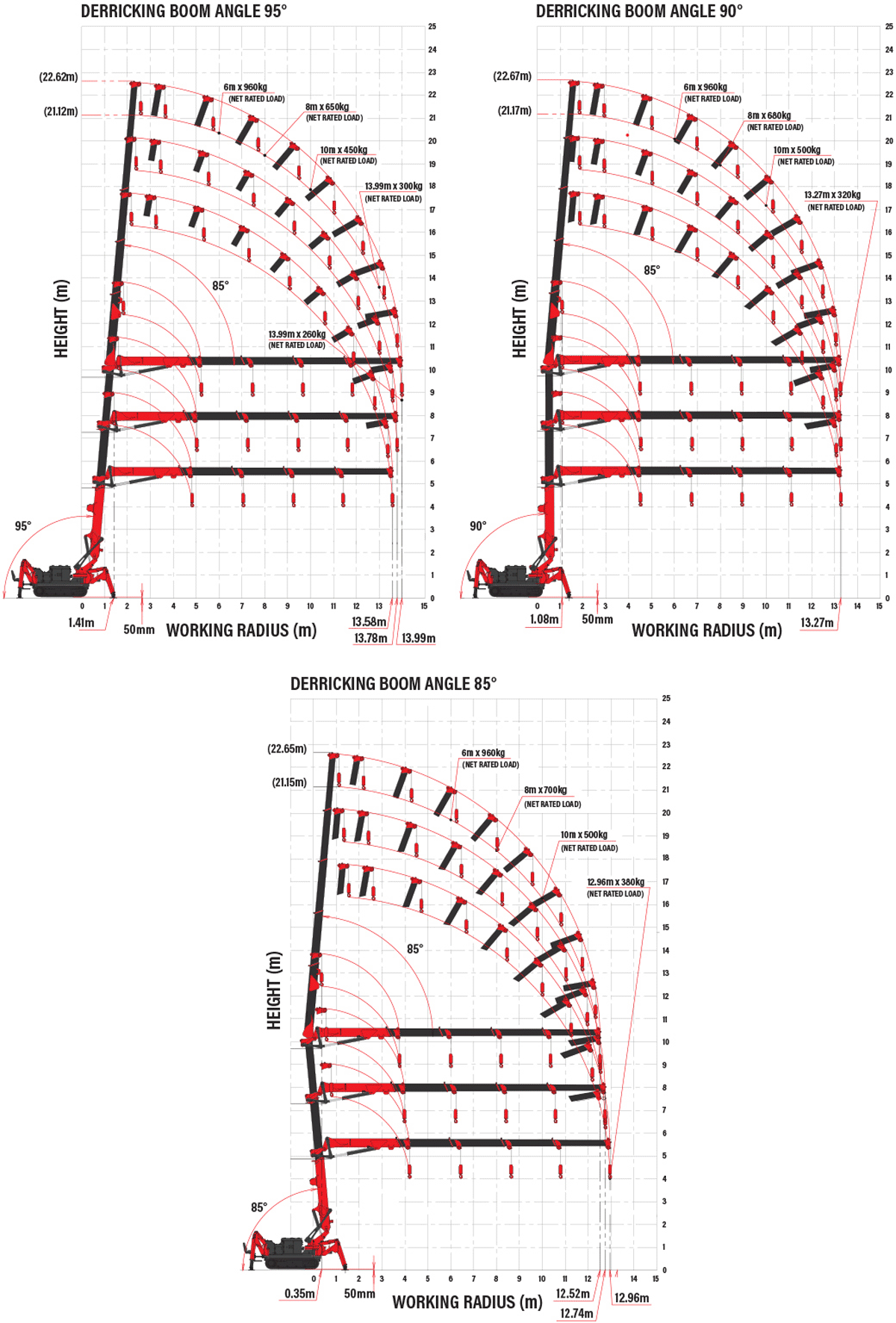

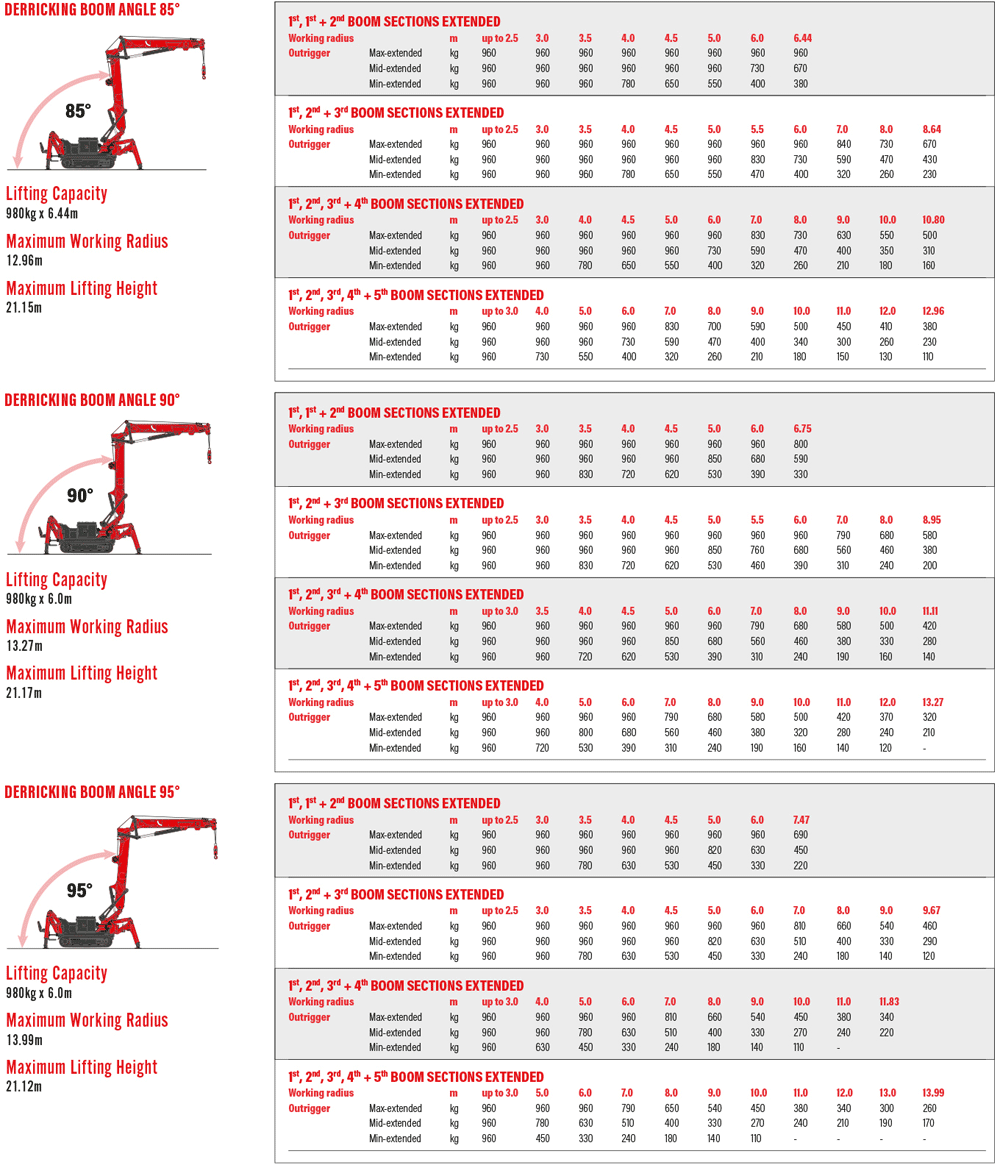

| Max Capacity | 0.98t x 6.44m |
| Max working height | 21.17m |
| Max working radius | 13.99m |
| Boom Length | 3.66 – 12.42m |
| Weight | 8650kg |
| Power source | Diesel / Electric dual option |
